AmerCable Industrial Grade G-GC Cables

Heavy-Duty G-GC Power Cables for Harsh Industrial Applications

Manufactured for use with static or slow-moving industrial equipment, including light-duty mining applications. AmerCable’s INDUSTRIAL GRADE Type G-GC features a reinforced jacket that is specially designed for easy stripping and cable preparation.


This cable is designed for applications where grounding conductors and a ground check conductor are required. Recommended maximum continuous conductor temperature is 90°C. Suitable for shallow water submersion when correctly terminated and sealed.

Available in UL or CSA construction.

RATINGS & APPROVALS

  • Cable carries “MSHA” marking indicating listing by the Mine Safety and Health Administration and the Pennsylvania Department of Environmental Protection.Pennsylvania Department of Environmental Protection
  • UL listed Type G-GC meeting requirements of UL 1650 and UL portable power cable file E97865
  • Canadian Standards Association File 82346, FT1,
  • FT5, -40°C Type W, G, G-GC, G-BGC up to 2kV
  • AmerCable IG Cable meets or exceeds CSA Standards C 22.2 #96
  • AmerCable Industrial grade G-GC cable meets or exceeds the material requirements of ICEA Standards S-75-381/NEMA WC-58.

UL Cable identification via permanent marking:

AMERCABLE E97865 TYPE G-GC [Size] 3/C 2000V 90C WET OR DRY (UL) SUN RES OIL RESISTANT 60C -40C FT5 [MSHA}

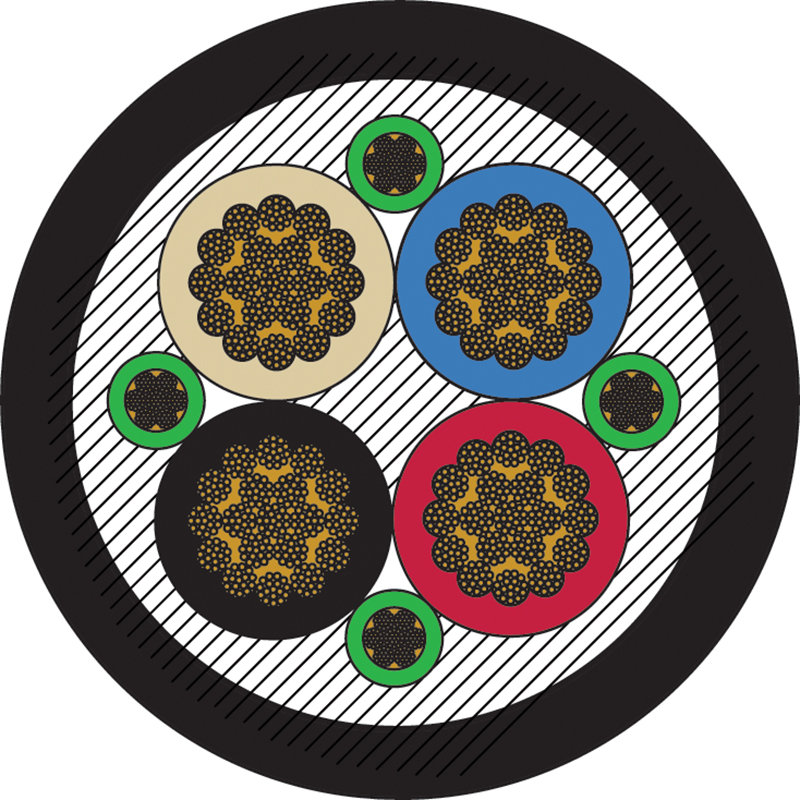

IG-G-GC UL Construction

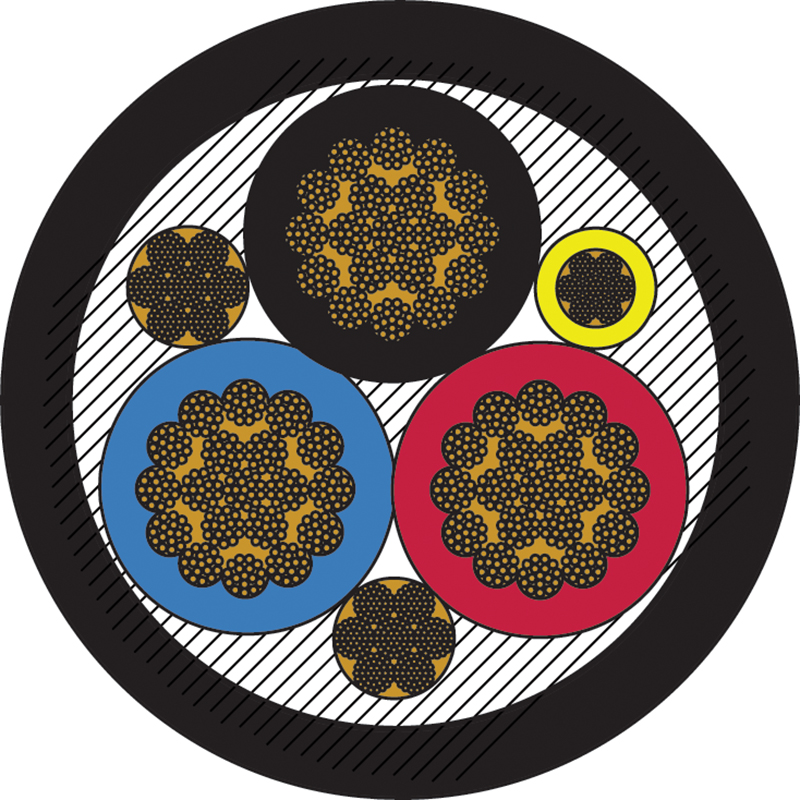

IG_G-GC_CSA

CSA Cable identification via permanent marking:

AMERCABLE 2000V [SIZE] 3/C TYPE G-GC CSA LR82346 CPE FT1 FT5 -40C SUN RES [MSHA]

AmerCable Industrial G-GC power cables
