Focused On Safer, More Productive Underground Mining Operations
AmerCable provides outstanding underground mining power cables, engineering support, and customer service to help keep your underground mining operation running efficiently. Order your cables with factory installed couplers or terminations and you’re ready to power up!
AmerCable leads the industry in cable safety training – no one else comes close to the added value we provide our customers! Made in USA!

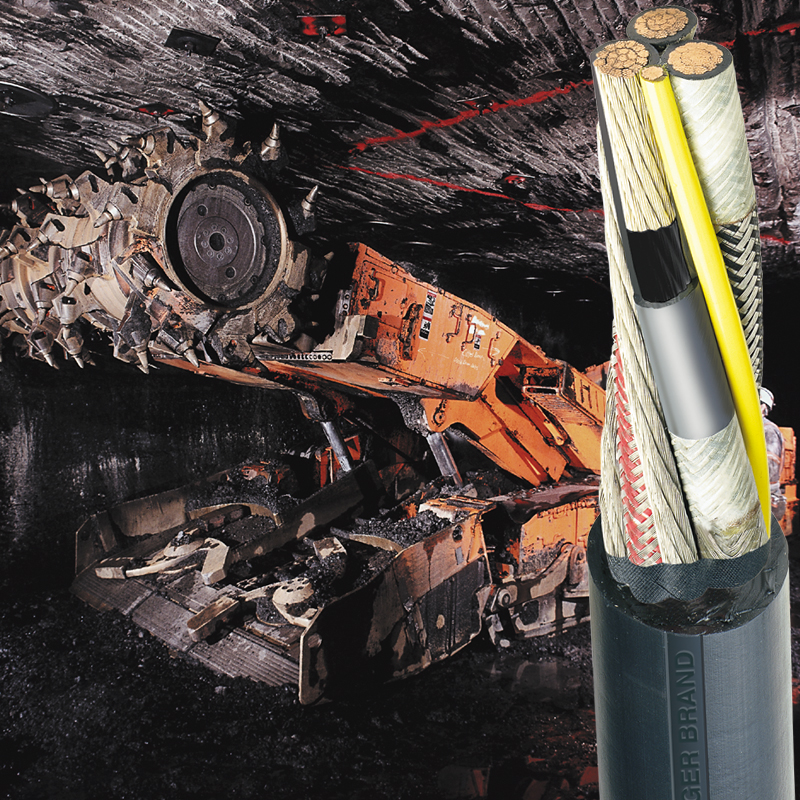

Trailing Cables

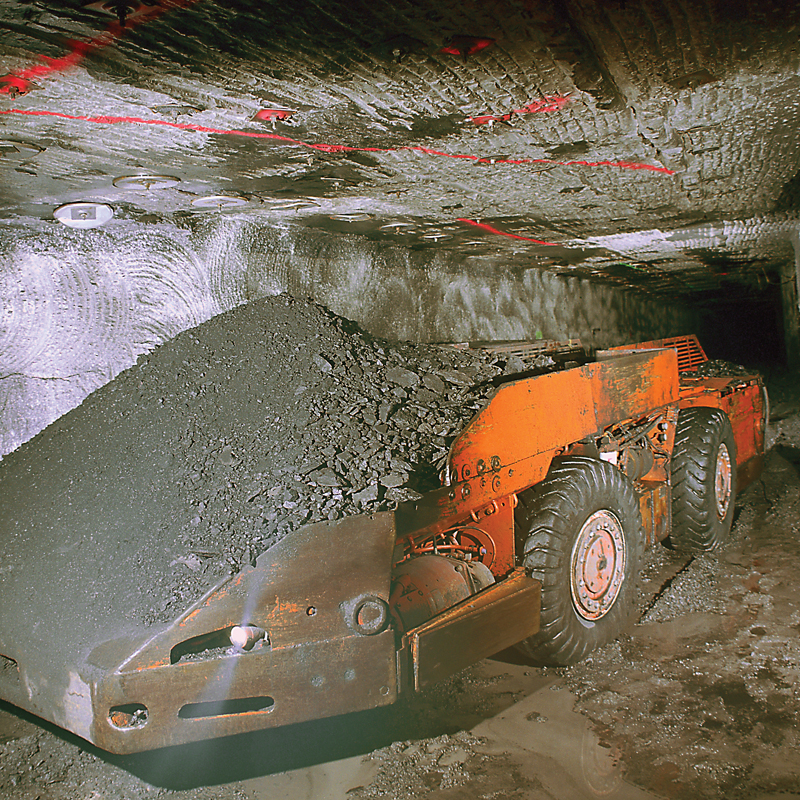

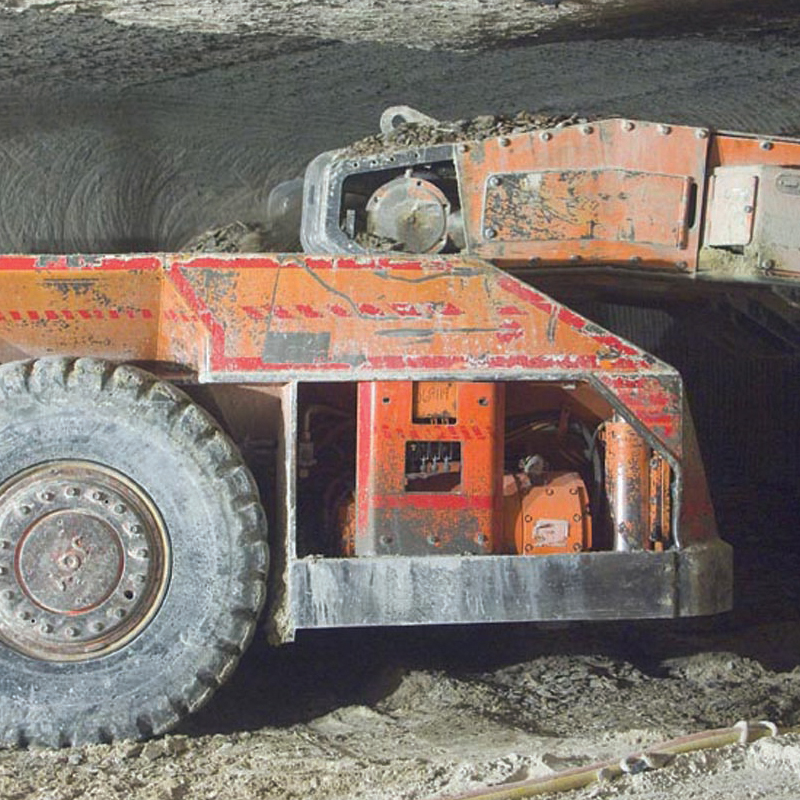

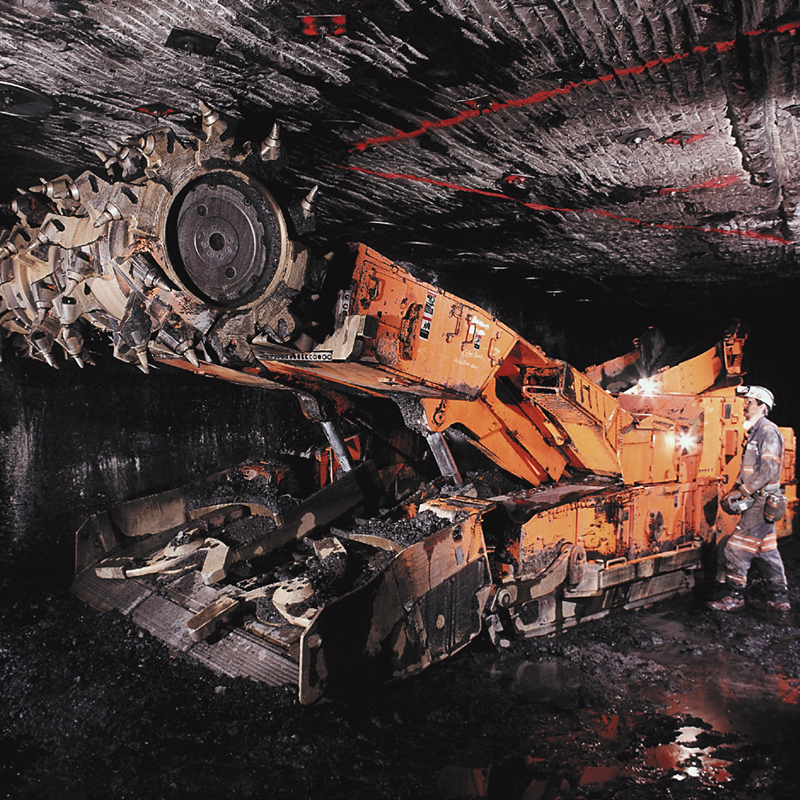

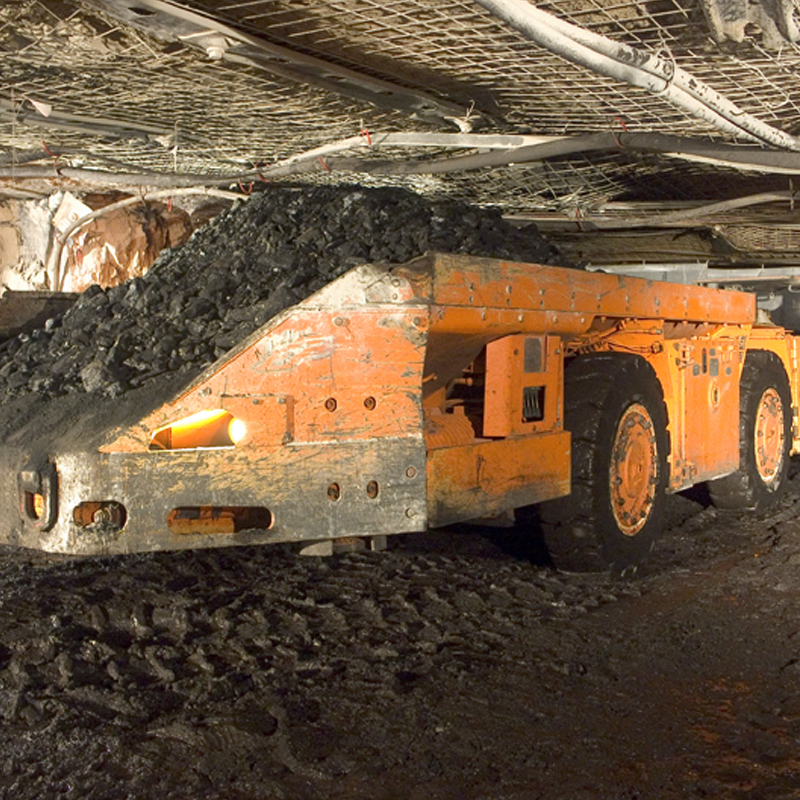

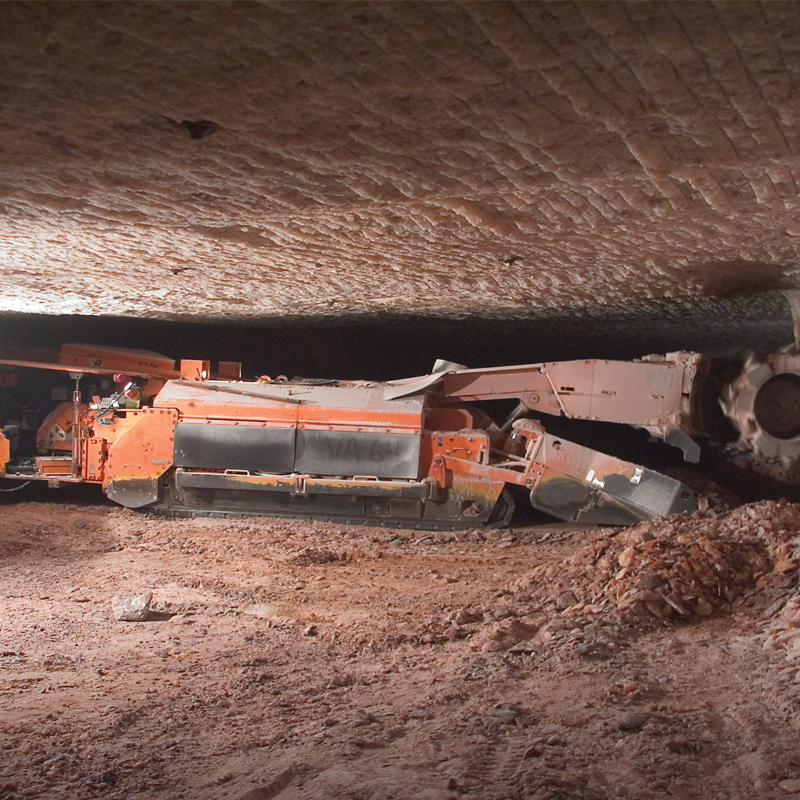

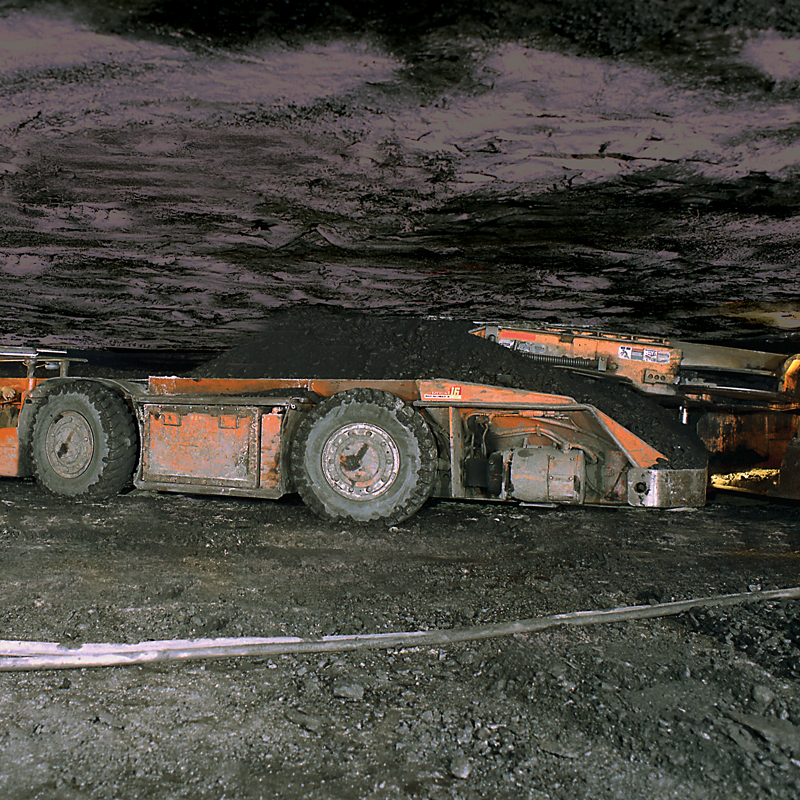

Tiger Brand trailing cables reliably power mining equipment around the world, including continuous miners, roadheaders, miner bolters, shuttle cars, roof bolters and mobile drills.

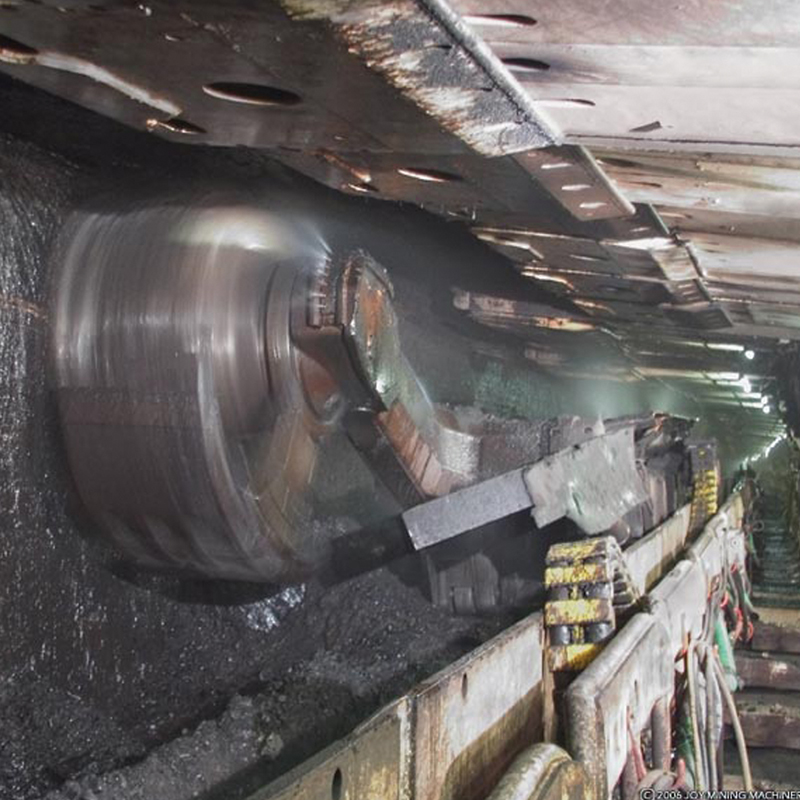

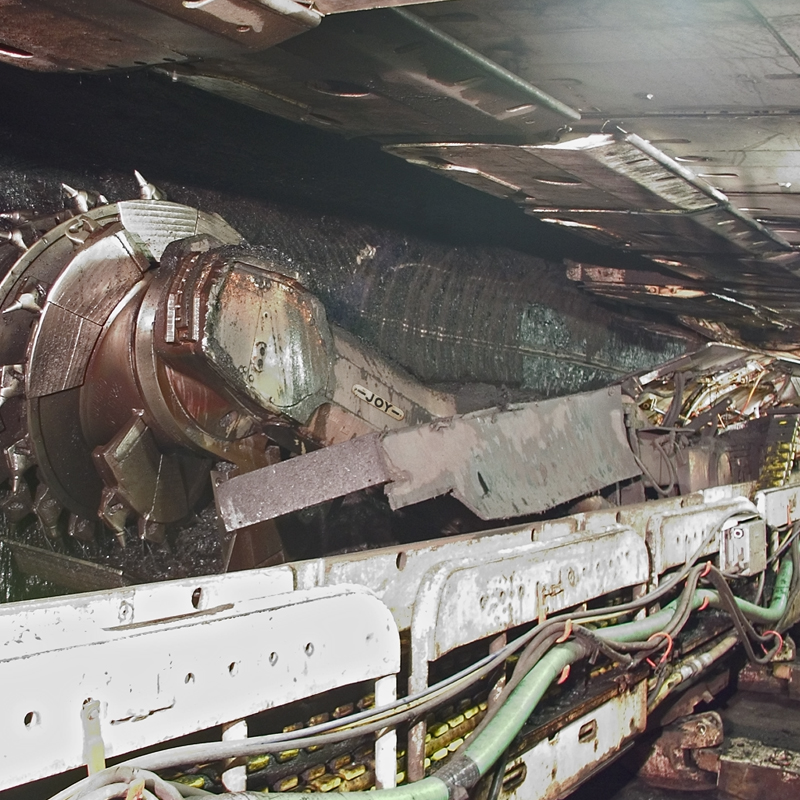

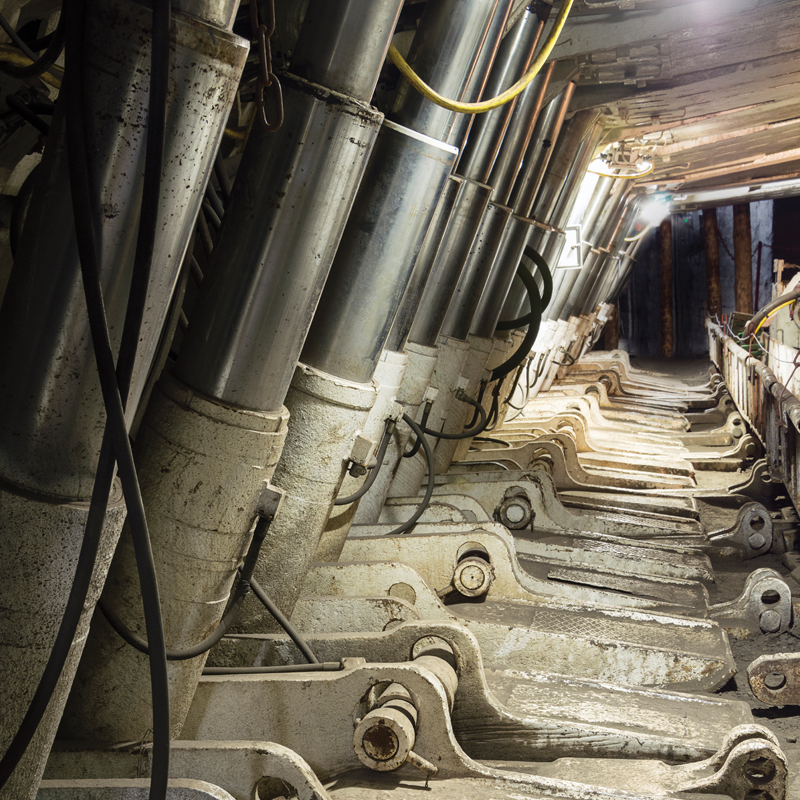

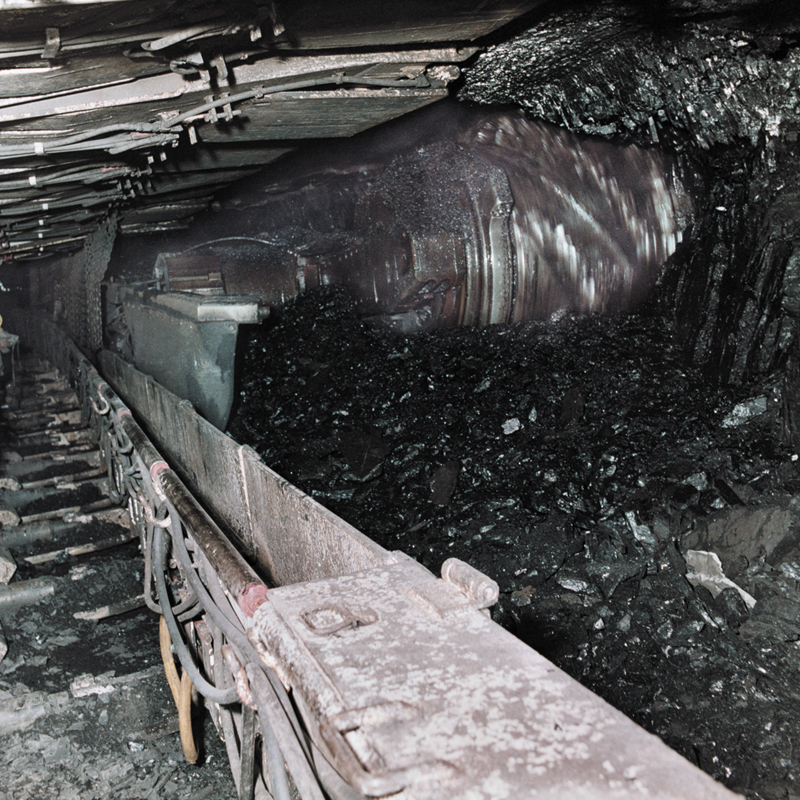

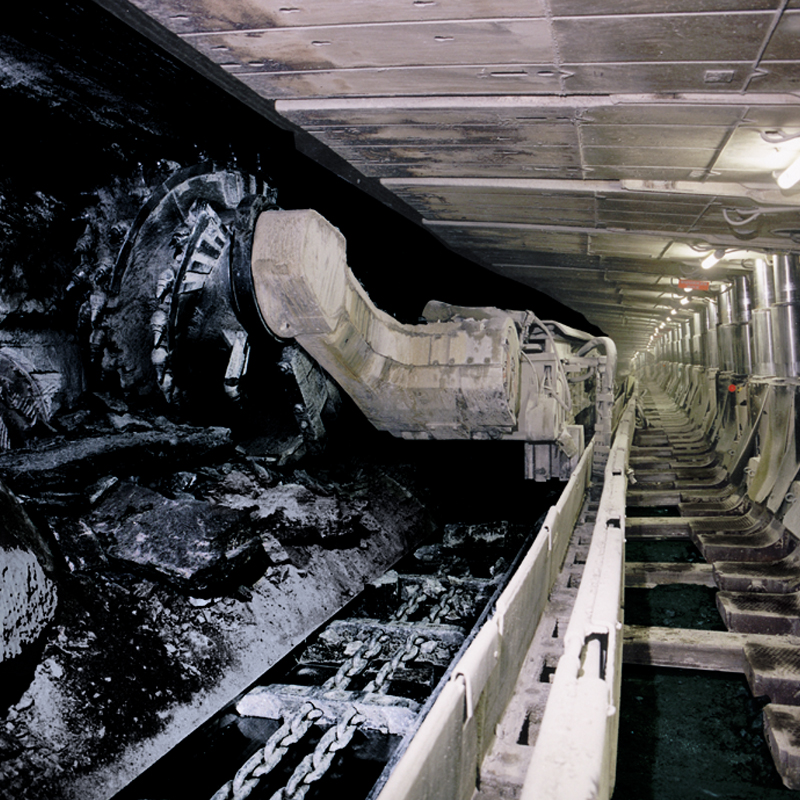

Longwall System Cables

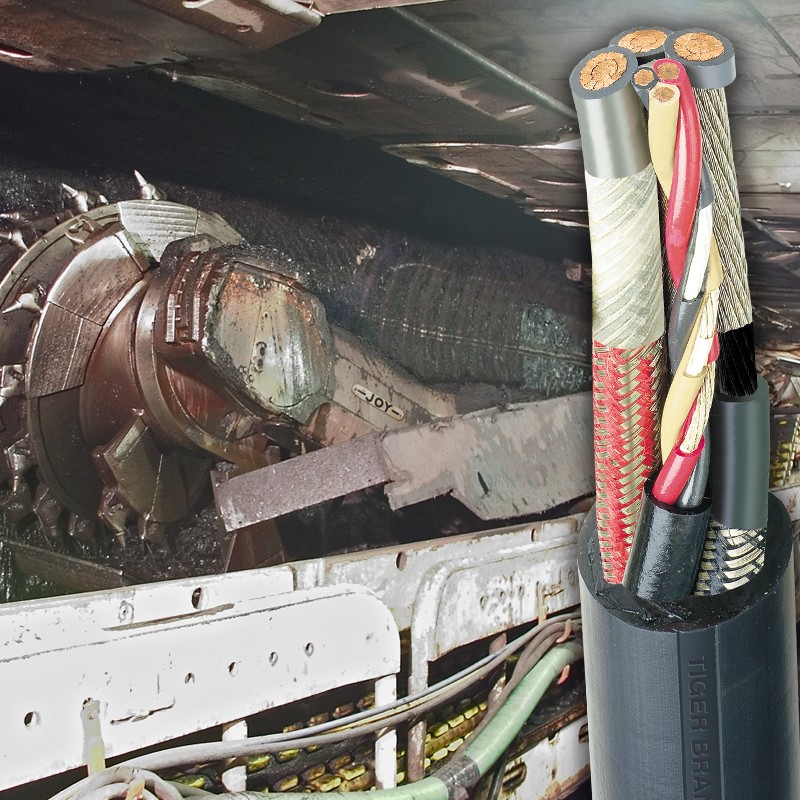

Tiger Brand longwall shearer, signal and lighting cables are designed for longer-lasting performance. Electro-optic power cables, combining power and fiber-optics in a single jacketed cable, are available for operations looking to get high-speed, real-time data from their longwall systems.
Infrastructure Cables
AmerCable also manufactures a full package of infrastructure cables, including MSHA- and CSA-approved Mine Power Feeder, VFD, and signal & lighting cables.
Committed to the Mining Industry
Since 1923, Tiger Brand has been manufacturing high-quality underground mining power cables. 100+ years later, mining cable is still AmerCable’s core business.
“Since the electrification of mines, Tiger Brand has been powering mobile equipment around the world in the harshest mining environments.”
Tiger Tips
Frequently Asked Questions about Tiger® Brand Underground Mining Cables
Does AmerCable manufacture flat mining cable?
Yes. AmerCable Tiger® Brand is available in these flat constructions:
- Type W (Flat) 2/C 2kV
- Type W (Flat) 4/C
- Type G-GC (Flat) 3/C 2kV
- Type SHD (Flat) 2kV
What is Type W Round Mining Cable?
Type W is a for general use in mining operations where bare grounding conductors are not required or desired. This cable is available from AmerCable in three- & four-conductor construction. The recommended maximum continuous conductor temperature is 90°C.
What is Type W Round Mining Cable best used for?
It’s suitable for use with mobile mining equipment such as continuous miners, drills, cutters, loading machines and AC shuttle cars where bare grounding conductors are not required or desired
What is Type G-GC mining cable?
Type G-GC is a heavy-duty, flexible mining cable designed with three power conductors, two grounding conductors and a bare ground-check conductor. It is commonly used to supply power to mobile mining equipment operating in demanding underground environments.
What equipment can Type G-GC cable be used with?
- Continuous miners
- Drills and cutters
- Loading machines
- AC shuttle cars
- Pumps
- Other mobile mining machinery requiring grounding and ground-check conductors
What is the voltage rating For Tiger Brand Type G-GC?
The cable is rated for applications up to 2,000 volts.
What does the ground check provide in Type G-GC?
The ground-check conductor allows compatible monitoring equipment to verify the continuity of the grounding circuit. This helps identify a loss of ground continuity and supports safer operation of mobile mining equipment.
What type of conductor insulation is used?
Tiger® Brand’s power conductors are insulated with 90°C ethylene-propylene rubber, commonly known as EPR. EPR insulation offers excellent electrical performance, flexibility and resistance to heat and moisture.
What is the maximum conductor temperature?
The recommended maximum continuous conductor temperature is 90°C.
Can Type G-GC mining cable be submerged in water?
AmerCable does not recommend ever deploying an energized mining cable in shallow water.
This cable is rated for shallow-water submersion down to 40 feet (12.2 meters) However, the installation conditions should be reviewed to make certain the selected cable is appropriate for the expected depth, duration and operating environment.
Is this cable approved by MSHA?
Yes. All Tiger Brand underground mining cables carry the “P-7K-184-MSHA” marking and are listed by the Mine Safety and Health Administration under approval number 7K-184-MSHA.
Does the cable have Pennsylvania mining approval?
Yes. It is listed by the Pennsylvania Department of Environmental Protection under approval number P-184.
Does Type G-GC cable meet Canadian (CSA) requirements?
Yes. Tiger® Brand mining cables meet or exceed CSA Standard C22.2 No. 96. Applicable Canadian ratings include CSA File 82346, FT1 and FT5 flame ratings, and a temperature rating of -50°C. The CSA listing covers Type G-GC and G-BGC cable through 2 kV. We have a long, successful history providing mining cables to Canadian mining companies.
What industry standards does Tiger Brand underground cable meet?
Tiger® Brand underground mining cables meet or exceed the applicable requirements of:
- ICEA S-75-381
- NEMA WC-58
- ASTM B172
- ASTM B33
- CSA C22.2 No. 96
What ground-check conductor size is used?
The ground-check conductor size varies based on the power-conductor size:
- 10 AWG ground-check conductor for 8 AWG through 2 AWG cable
- 8 AWG ground-check conductor for 1 AWG through 4/0 AWG cable
- 6 AWG ground-check conductor for 250 kcmil through 500 kcmil cable
What CPE & TPU jacket colors are available?
Black is the standard jacket color, but the cables are also available in solid blue, green, orange, red and yellow. Availability should be confirmed when ordering.
CPE jackets are also availabe with colors & stripes or relfective Tiger Stripes.
Do colored jackets have reduced electrical properties?
No. Our cables, regardless of color, all deliver the same high-quality, consistent electrical properties.
How do I select the correct Type G-GC cable size?
Cable selection should consider these factors:
- Equipment voltage and full-load current
- Required ampacity
- Cable length and allowable voltage drop
- Duty cycle
- Ambient temperature
- Installation and environmental conditions
- Applicable MSHA, state and CSA requirements
Contact AmerCable for assistance selecting the appropriate conductor size and cable configuration for your mining application.
What global certifications for Tiger Brand mining cable hold?
MSHA, UL, CSA, RETIE, MA and AS/NZS.
Check with your AmerCable rep for certification specifics.
Is Tiger® Brand Made in the USA?
Yes. All of our mining cables are El Dorado, Arkansas USA.
How long has AmerCable been making Tiger Brand mining cables?
Tiger Brand was trademarked in 1923 and has been produced ever since.
Do you make Mine Power Feeder cables?
Yes. AmerCable is a mining indsutry leader in the production of highly reliable Mine Power Feeder cables. All are MSHA and CSA approved.
Does AmerCable make power cables for Longwall Systems?
Yes. AmerCable manufactures Type SHD-PCG and Type SHD-CGC power cables, plus Longwall Signal cables.
Does AmerCable make any underground cables that include a fiber optic bunder?
Yes, you can get our Longwall SHD-PCG with a high-speed fiber optic cable for real-time data retrieval.
