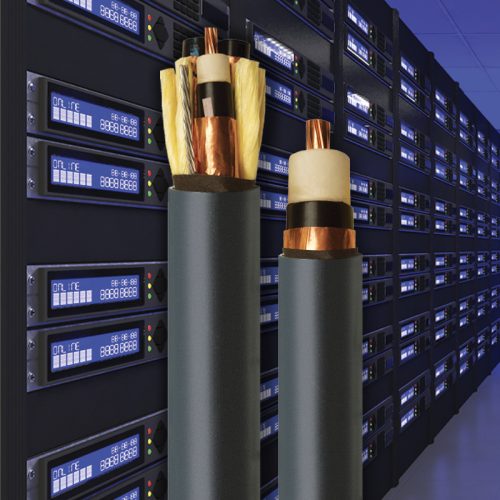

MV-105 Medium Voltage Power Cable
5kV, 8kV, 15kV, 25kV & 35kV
AmerCable’s Medium Voltage power cables are recommended for use as feeder circuits in electric utility generating plants ,distribution circuits and feeders or branch circuits used in heavy-industrial and commercial operations.
Type MV-105 cables may be installed in wet or dry locations, indoors or outdoors (exposed to sunlight), in any raceway or underground duct, directly buried if installed in a system with a grounding conductor in close proximity that conforms with NEC Section 250.4(A)(5) or messenger-supported at industrial facilities or electric generating utilities.
SHORTEST LEAD TIMES!
FEATURES
- UL listed as Type MV-105
- Standard jacket is an overall polyvinyl chloride (PVC) jacket per UL 1072. Also available with a mold-cured thermosetting Chlorinated Polyethylene (CPE) Jacket.
- Flame retardant: UL 1685, may be marked “For CT Use”
- Excellent mechanical and physical properties
- Sunlight resistant jacket
- Suitable for direct burial, use in cable tray and embedment in concrete
Besst IN ON-TIME DELIVERY!
BEND RADIUS
- Fixed position: 7X cable overall diameter
- During pulling: 12X cable overall diameter
- Triplexed 1/C: 12X individual shielded conductor or 7X overall diameter, whichever is greater
RATINGS & APPROVALS
- 105°C temperature rating
- Emergency Temperatures: Overload 140C & Short Circuit 250C
- Meets UL 1072 requirements for medium voltage power cables
- Insulation meets electrical and physical requirements of ICEA-S-93-639/NEMA WC 74 and UL 1072
- Meets AEIC CS B – specification for extruded dielectric shielded power cables rated 5 – 46kV (Qualification test requirements)
- Meets ICEA S-97-682 standard for shielded utility cable rated 5-46kV
